CylinderTargetBehaviour Class Reference

This class serves both as an augmentation definition for a CylinderTarget in the editor as well as a tracked CylinderTarget result at runtime. More...

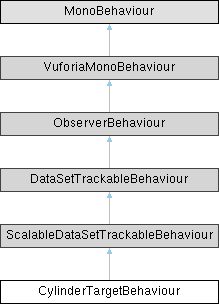

Inheritance diagram for CylinderTargetBehaviour:

Public Member Functions
TrackingOptimization	GetTrackingOptimization ()
	Get the tracking optimization.
bool	SetBottomDiameter (float value)
	Set the bottom diameter. Changing this value uniformly scales the target.
bool	SetSideLength (float value)
	Set the side length. Changing this value uniformly scales the target.
bool	SetTopDiameter (float value)
	Set the top diameter. Changing this value uniformly scales the target.
bool	SetTrackingOptimization (TrackingOptimization optimization)
	Set the tracking optimization.

Properties
float	BottomDiameter [get]
	Get the bottom diameter.
float	SideLength [get]
	Get the side length.
float	TopDiameter [get]
	Get the top diameter.
Properties inherited from ObserverBehaviour
int?	ID [get]
	The runtime Id of the Observer.
string	TargetName [get]
	Name of the target of the Observer.
TargetStatus	TargetStatus = TargetStatus.NotObserved [get]
	Current status information of the target.

Additional Inherited Members
Events inherited from ObserverBehaviour
Action< ObserverBehaviour >	OnBehaviourDestroyed
	Triggered when this behaviour is destroyed. Can be used for script cleanup.
Action< ObserverBehaviour, TargetStatus >	OnTargetStatusChanged
	Triggered when the TargetStatus changes.

Detailed Description

This class serves both as an augmentation definition for a CylinderTarget in the editor as well as a tracked CylinderTarget result at runtime.

Member Function Documentation

GetTrackingOptimization()

TrackingOptimization GetTrackingOptimization ( )

inline

Get the tracking optimization.

SetBottomDiameter()

bool SetBottomDiameter ( float value )

inline

Set the bottom diameter. Changing this value uniformly scales the target.

Parameters

value

The bottom diameter value in meters

Returns

Returns true on success

SetSideLength()

bool SetSideLength ( float value )

inline

Set the side length. Changing this value uniformly scales the target.

Parameters

value

The side length value in meters

Returns

Returns true on success

SetTopDiameter()

bool SetTopDiameter ( float value )

inline

Set the top diameter. Changing this value uniformly scales the target.

Parameters

value

The top diameter value in meters

Returns

Returns true on success

SetTrackingOptimization()

bool SetTrackingOptimization ( TrackingOptimization optimization )

inline

Set the tracking optimization.

Property Documentation

BottomDiameter

float BottomDiameter

get

Get the bottom diameter.

SideLength

float SideLength

get

Get the side length.

TopDiameter

float TopDiameter

get

Get the top diameter.
