ImageTargetBehaviour Class Reference

This class serves both as an augmentation definition for an ImageTarget in the editor as well as a tracked image target result at runtime. More...

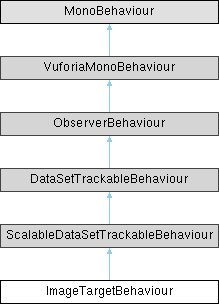

Inheritance diagram for ImageTargetBehaviour:

Public Member Functions
Texture2D	GetRuntimeTargetTexture ()
	Returns the texture that is assigned to this target during the authoring in the editor.
Vector2	GetSize ()
	Returns the size of this target in scene units.
TrackingOptimization	GetTrackingOptimization ()
	Get the tracking optimization.
void	SetHeight (float height)
	Set the height (y-dimension) of the target in scene units. This will scale the target uniformly. The dataset of this target has to be deactivated before setting the size.
bool	SetTrackingOptimization (TrackingOptimization optimization)
	Set the tracking optimization.
void	SetWidth (float width)
	Set the width (x-dimension) of the target in scene units. This will scale the target uniformly. The dataset of this target has to be deactivated before setting the size.

Properties
ImageTargetType	ImageTargetType [get, set]
	Type of image target: can be a user created target or a static one from a dataset or cloud reco.
Properties inherited from ObserverBehaviour
int?	ID [get]
	The runtime Id of the Observer.
string	TargetName [get]
	Name of the target of the Observer.
TargetStatus	TargetStatus = TargetStatus.NotObserved [get]
	Current status information of the target.

Additional Inherited Members
Events inherited from ObserverBehaviour
Action< ObserverBehaviour >	OnBehaviourDestroyed
	Triggered when this behaviour is destroyed. Can be used for script cleanup.
Action< ObserverBehaviour, TargetStatus >	OnTargetStatusChanged
	Triggered when the TargetStatus changes.

Detailed Description

This class serves both as an augmentation definition for an ImageTarget in the editor as well as a tracked image target result at runtime.

Member Function Documentation

GetRuntimeTargetTexture()

Texture2D GetRuntimeTargetTexture ( )

inline

Returns the texture that is assigned to this target during the authoring in the editor.

GetSize()

Vector2 GetSize ( )

inline

Returns the size of this target in scene units.

GetTrackingOptimization()

TrackingOptimization GetTrackingOptimization ( )

inline

Get the tracking optimization.

SetHeight()

void SetHeight ( float height )

inline

Set the height (y-dimension) of the target in scene units. This will scale the target uniformly. The dataset of this target has to be deactivated before setting the size.

SetTrackingOptimization()

bool SetTrackingOptimization ( TrackingOptimization optimization )

inline

Set the tracking optimization.

SetWidth()

void SetWidth ( float width )

inline

Set the width (x-dimension) of the target in scene units. This will scale the target uniformly. The dataset of this target has to be deactivated before setting the size.

Property Documentation

ImageTargetType

ImageTargetType ImageTargetType

getset

Type of image target: can be a user created target or a static one from a dataset or cloud reco.
